Super Duty Engine Cage 1999-2007
Price range: $1,100.00 through $1,275.00
Fully bolt-on engine cage for 1999–2007 Ford Super Duty and Excursion with gas 5.4L and V10 engines. Detachable cross member clears battery, brake booster, A/C, and air box. Does not work with a body lift.

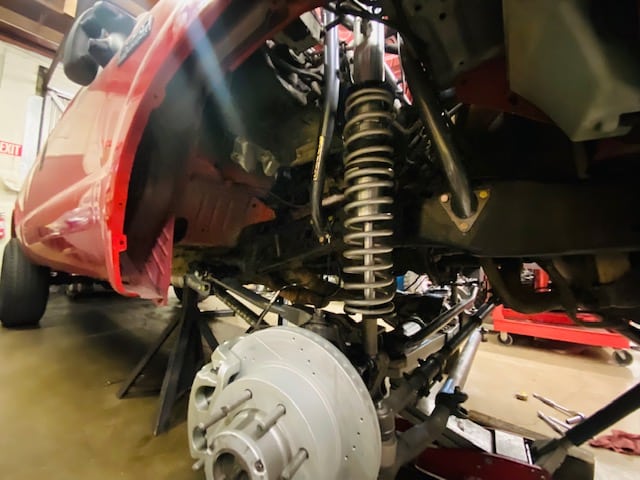

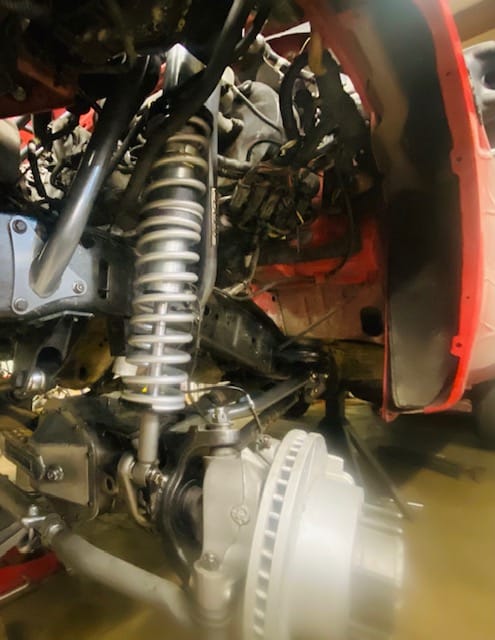

Coil-Over Mounting for the 2WD Super Duty Long-Travel Build

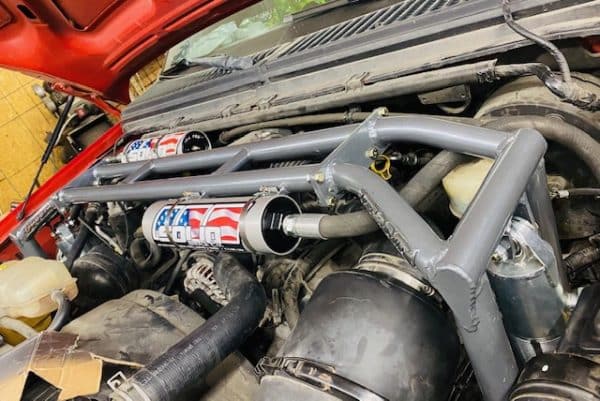

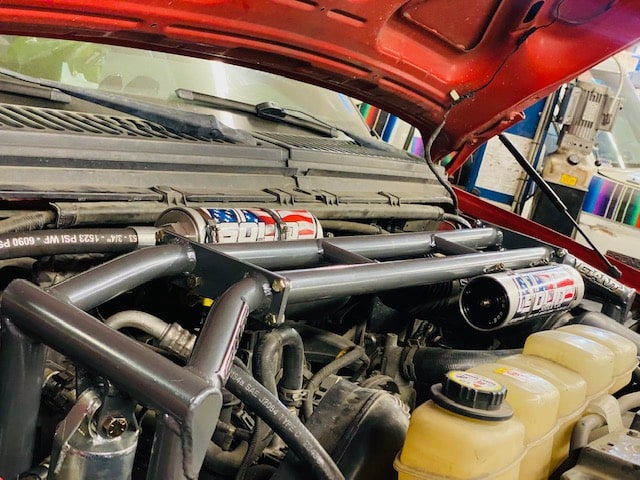

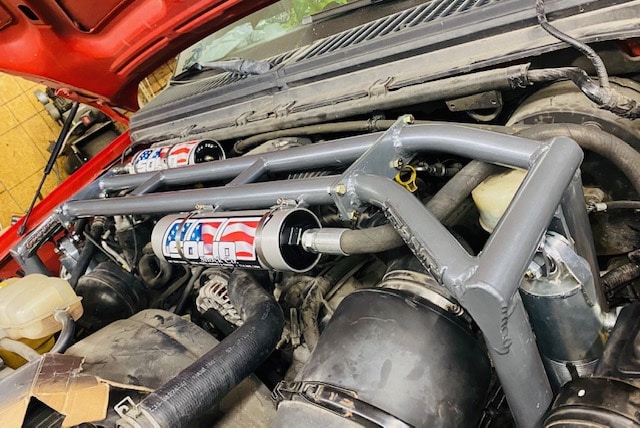

The 1999-2007 Ford Super Duty and Excursion 2WD engine bay presents specific coil-over mounting challenges — battery, brake booster, A/C compressor, and air box all compete for the space where the shock mount needs to go. The GIANT MotorSports Super Duty Engine Cage is designed around those constraints: the detachable cross member allows full access to all four without removing the cage.
Fully bolt-on — no drilling, no welding to the engine bay structure. Compatible with gas 5.4L and V10 engines in the target year range.
Specifications
- Compatible vehicles: 1999-2007 Ford Super Duty and Excursion (gas 5.4L and V10)
- Installation: Fully bolt-on
- Cross member: Detachable for maintenance access
- Clearances: Battery, brake booster, A/C, air box
Diesel Compatibility Note
Diesel Super Duty trucks (7.3L and 6.0L Powerstroke) can use this cage but require significant accessory relocation — the turbo and intercooler plumbing occupies space the cage cross member needs. Call 714-265-1450 before ordering to map out what needs to move on a diesel.
Body Lift Incompatibility
Does not work with a body lift. The mounting geometry assumes the factory body position relative to the frame. If your Super Duty has a body lift, call before ordering.
Pairs With
Super Duty 2WD I-Beam Long Travel Kit, Ford Super Duty/Excursion 2WD Suspension Lift Kit, and appropriate coil-overs. Call 714-265-1450 to spec the complete front suspension package for your Super Duty.
